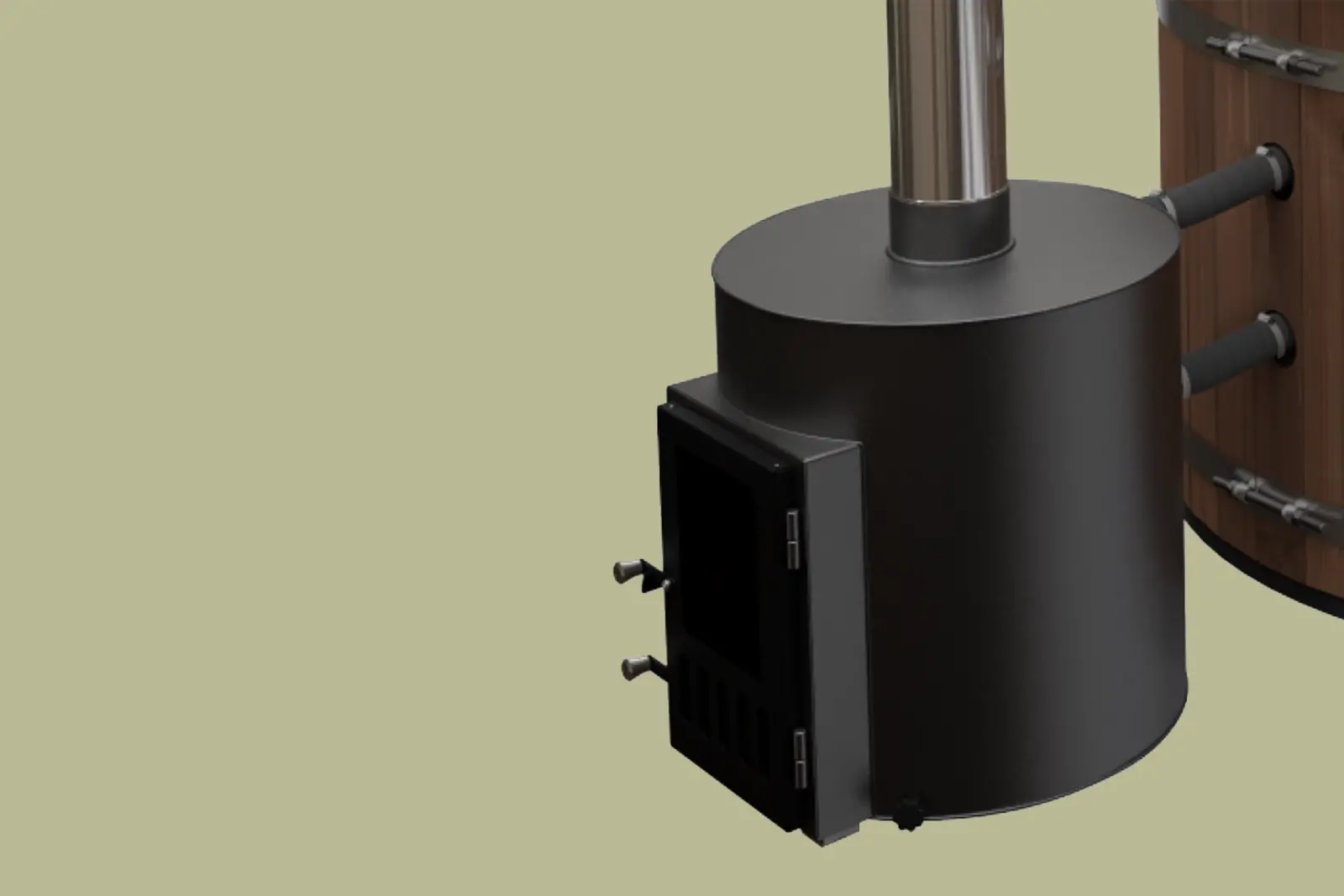

External Hot Tub Stove 55kW
Powerful 55kW wood-fired external hot tub stove.
Stove comes with:
- Aluminium
- Coating
- 2 x stainless steel flue pipes
- rain cap
- oxygen grille
- connection accessories1
- water plug
The stove is easy to use and easy to connect up to your hot tub.
Delivery time: In stock, immediately available.
- External Hot Tub Stove (€ 1.695,00)
- Transport: Delivery to an address in Netherlands
€ 1.695,00
Luxury & Comfort, Sustainable Design
Experience the ultimate comfort of a wood-fired hot tub with our powerful external 55 kW heater. This heater is engineered to heat your hot tub quickly and efficiently for many years.
The heating time depends on the size of the hot tub, the outdoor temperature, the type of wood, and the cover used.
During heating, both the heater and the hot tub must be filled with water above the drain hose to ensure proper circulation; otherwise, the heater may be damaged. The wood stove has a double-walled design. Inside the double wall are an inlet hose (bottom) and an outlet hose (top), through which the hot tub water flows automatically. Because warm water rises (thermosyphon effect), the heated water circulates naturally through the rest of the tub. The hot tub with external heater is therefore heated entirely by natural circulation, without a pump. Because the heater is positioned outside the tub, you also benefit from extra space inside the hot tub.
- Powerful Heating: The heater is designed for maximum heat transfer, allowing your hot tub to reach a pleasant and stable temperature in a short time.
- Integrated Ash Drawer: A convenient sliding ash drawer at the bottom makes cleaning and maintenance easy after use.
- Adjustable Air Intake: The slots beneath the door provide adjustable airflow, essential for optimal combustion.
- Includes Chimney: Delivered with a robust stainless-steel chimney for safe exhaust of smoke gases.
- Easy Drainage: A user-friendly drain valve on the side of the heater ensures quick and easy emptying.

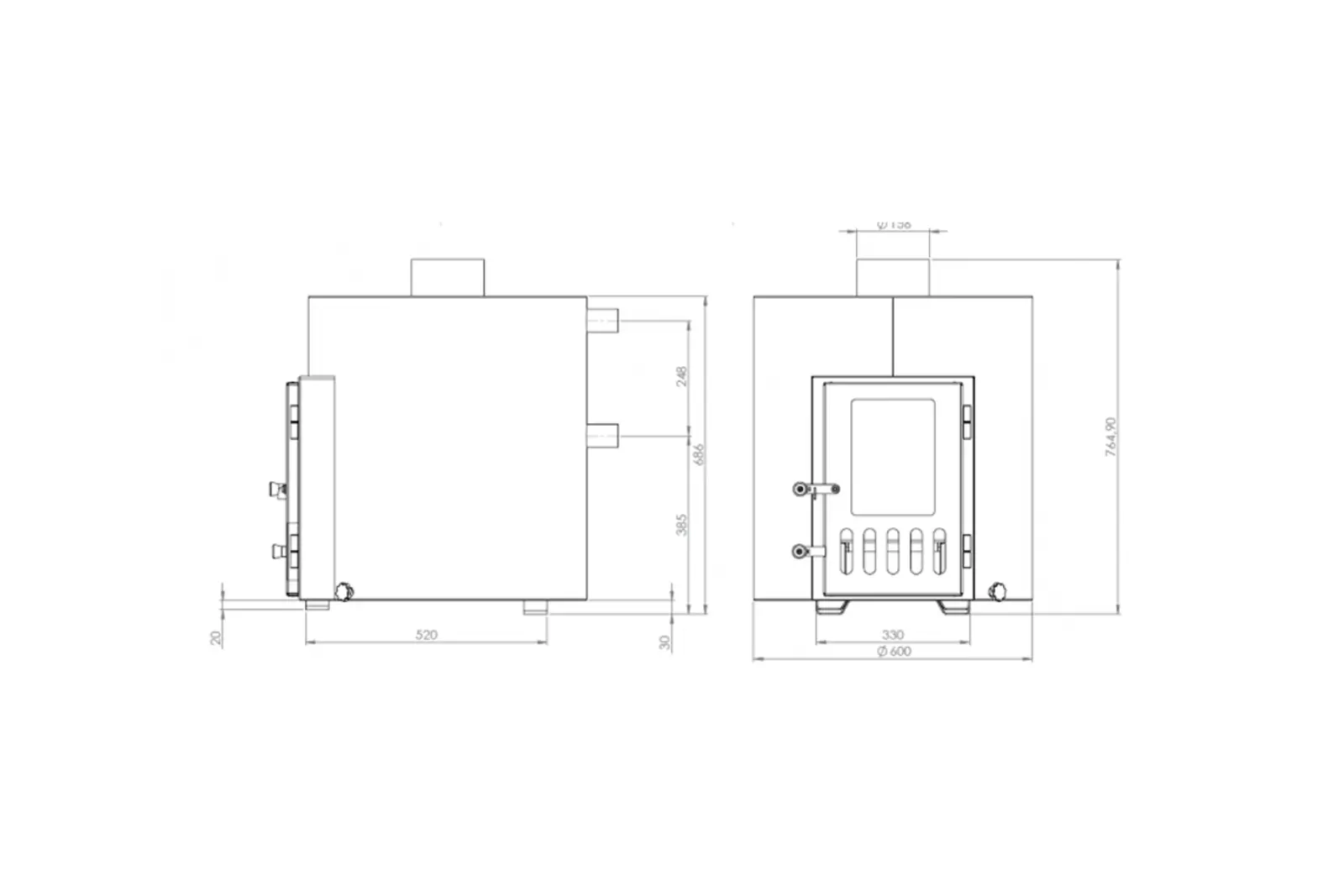

External Hot Tub Heater 55 kW
Connections (water)
Outer diameter of water connections (inlet and outlet):
Ø 50 mm
Positioning of the connections
Center of lower water connection to ground:
385 mm
Center of lower water connection to center of upper water connection:
248 mm
Center of upper water connection to top:
53 mm
Flue connection
Flue outlet diameter:
Ø 156 mm
Heater dimensions
Total height (from ground to top):
686 mm
Diameter:
600 mm
Bottom of heater to ground:
30 mm
Material
Heater material: Aluminium
Water conduit material: Aluminium
Flue connection material: Aluminium
Stove pipe material: Stainless steel
The heater must be installed with a slight forward tilt of two degrees, and the upper hose (return hose) must also be mounted with a slight upward angle. This is necessary to ensure that no air becomes trapped inside the heater’s internal components and to prevent water from accumulating and freezing during low temperatures.
If you wish to place an elbow fitting on the water connection, make sure that the distance between the elbow and the heater’s connection does not exceed 12 centimeters.
