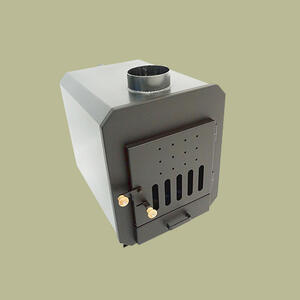

External Hot Tub Stove 45kW
Powerful 45kW wood-fired external hot tub stove.
Stove comes with:
- Coating
- 2 x stainless steel flue pipes
- Rain cap
- Oxygen grille
- Ash pan
- Connection accessories
- Water plug
The stove is easy to use and easy to connect up to your hot tub.
Delivery time: In stock, immediately available.
- Model
- Stove door option
- Delivery
- External Hot Tub Stove (€ 1.395,00)
- Transport: Delivery to an address in Netherlands
€ 1.395,00
Luxury & Comfort, Sustainable Design
Create your own wellness experience with this premium wood-fired hot tub heater, designed to heat your hot tub quickly and efficiently. The heater is made of aluminium with a black coating for an extra sleek appearance.
The heating time depends on the size of the hot tub, the outdoor temperature, the type of wood, and the cover.
During operation, both the heater and the hot tub must be filled with water above the drain hose to ensure proper circulation. Failing to do so may damage the heater. The wood-burning stove has a double-walled construction. Inside the cavity are an inlet hose (bottom) and an outlet hose (top), through which the water flows automatically. Because warm water rises (convective action), the heated water circulates naturally through the rest of the tub. This means the hot tub with external heater is heated entirely by natural circulation, without a pump. As the heater is positioned outside the tub, the bathing space inside is maximized.
- Efficient Heating: The heater is engineered for optimal heat transfer, bringing your hot tub to a pleasant temperature in a short time.
- Integrated Ash Drawer: A convenient slide-out ash drawer at the bottom simplifies cleaning and maintenance after use.
- Adjustable Air Intake: The slots beneath the door provide adjustable oxygen intake, essential for optimal combustion.
- Including Chimney Pipe: Supplied with a robust stainless-steel chimney pipe for the safe discharge of flue gases.
- Easy Drainage: A user-friendly drainage valve is located on the side of the heater for simple emptying.
External hot tub heater 45 kW
Connections (water)
Outer diameter of water connections (inlet and outlet):
Ø 50 mm
Positioning of the connections
Center of lower water connection to ground:
385 mm
Center of lower water connection to center of upper water connection:
248 mm
Center of upper water connection to top:
25 mm
Flue connection
Flue outlet diameter:
Ø 156 mm
Dimensions of the heater
Total height (from ground to top):
658 mm
Width:
491 mm
Depth:
602 mm
Bottom to ground:
80 mm
Material
Heater material: Aluminium
Water passage material: Aluminium
Flue connection material: Aluminium
Stove pipe material: Stainless steel
The heater must be installed with a slight forward tilt of two degrees, and the upper hose (return hose) must also be mounted at a slight upward angle. This is necessary to ensure that no air becomes trapped inside the heater's internal components and to prevent water from accumulating and freezing at low temperatures.
If you intend to install an elbow on the water connection, make sure that the distance between the elbow and the heater’s connection does not exceed 12 centimeters.
